Fig. 2E draws the gene regulatory network ARACNe found. DDX54 alone regulates 1,105 genes.

A network graph is made of two things — nodes and edges. But only the edges are in the data. The data says “A and B are connected”; it says nothing about where A belongs on screen.

Node positions are decided by a layout algorithm, usually a force-directed one that pretends connected nodes attract and unconnected ones repel. And that algorithm gives a different answer every time you run it.

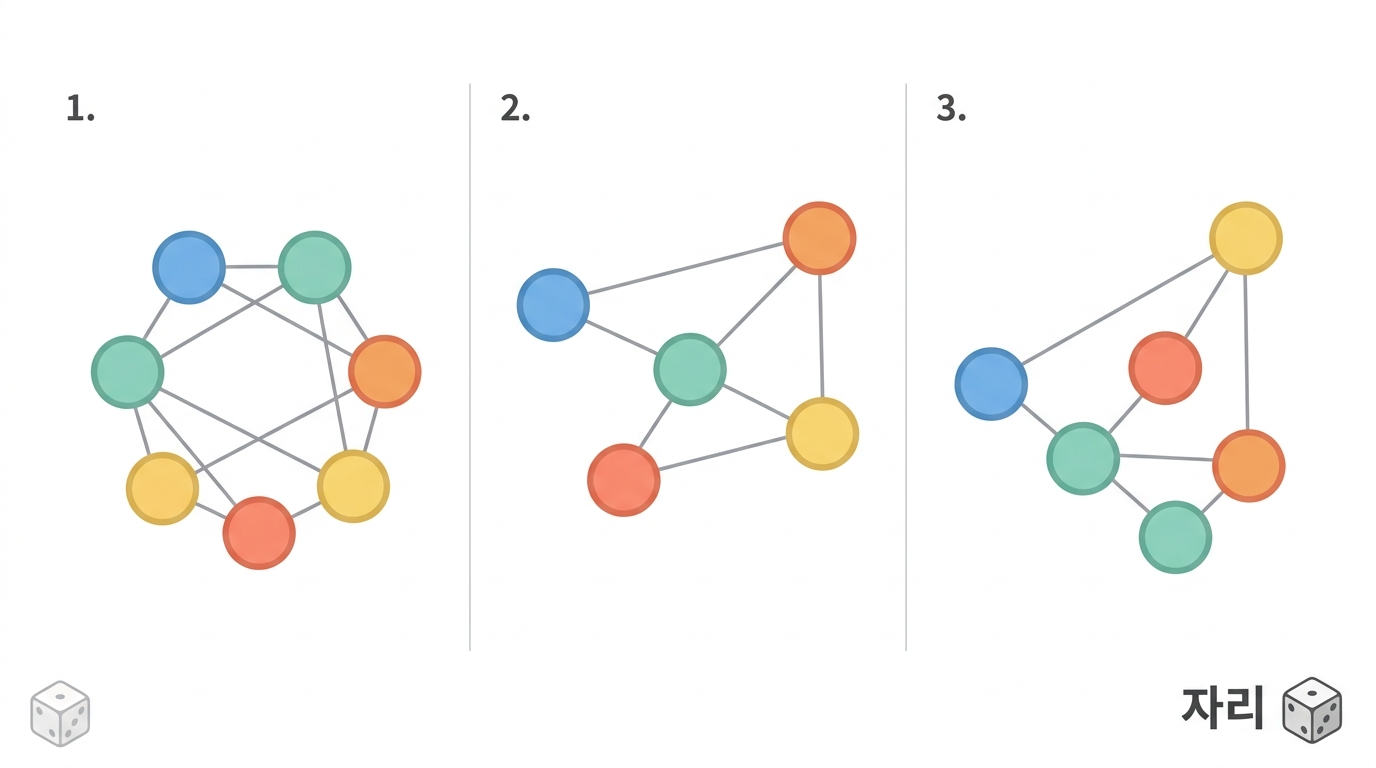

Re-lay out the same network several times. The shape changes; the connections do not.

Loading…

The three look nothing alike. And yet not one connected pair changed. Only the seed did.

Python Runs in your browser

import matplotlib.pyplot as plt
import viz, numpy as np, json

F = json.load(open("viz_facts.json"))
N = F["net"]
n = len(N["nodes"]); E = N["edges"]

def layout(seed, steps=140):
    rng = np.random.default_rng(seed)
    P = rng.normal(0, 1, (n, 2))
    for _ in range(steps):
        F_ = np.zeros((n, 2))
        for i in range(n):                       # nodes push each other apart
            d = P[i] - P
            r = np.linalg.norm(d, axis=1) + 1e-6
            F_[i] += (d / (r**2)[:, None]).sum(axis=0) * .05
        for i, j, w in E:                        # connected nodes pull together
            d = P[j] - P[i]
            F_[i] += d * .02; F_[j] -= d * .02
        P += F_ * .5
    return P

fig, ax = plt.subplots(1, 3, figsize=(11, 3.7))
for a, seed in zip(ax, [1, 2, 3]):
    P = layout(seed)
    for i, j, w in E:
        a.plot(P[[i, j], 0], P[[i, j], 1], lw=.7, color="#bbb", zorder=1)
    a.scatter(P[:, 0], P[:, 1], s=42, color=viz.PAL[0], zorder=2)
    a.set_title("seed = %d" % seed, fontsize=9)
    a.set_xticks([]); a.set_yticks([]); a.set_aspect("equal")
fig.tight_layout()
print("%d nodes - %d edges. The three pictures use exactly the same data." % (n, len(E)))

So is a network graph useless? No. It just answers a different question.

What a network graph answers

how tangled the whole thing is. Roughly how many blobs there are. Whether edges pile onto one node. Fig. 2E is really showing “DDX54 has a lot of edges”

What it cannot answer

how many edges each node has. Which node is more central. That is a bar chart's job

The same data. But now you can read how many. The graph was not bad — the question was different.

Python Runs in your browser

import matplotlib.pyplot as plt
import viz, numpy as np, json

F = json.load(open("viz_facts.json"))
N = F["net"]
deg = np.zeros(len(N["nodes"]), int)
for i, j, w in N["edges"]:
    deg[i] += 1; deg[j] += 1

o = np.argsort(deg)[::-1][:12]
fig, ax = plt.subplots(figsize=(5.6, 3.4))
ax.barh([N["nodes"][i] for i in o][::-1], [deg[i] for i in o][::-1], color=viz.PAL[0])
ax.set_xlabel("number of edges", fontsize=8); viz.bare(ax)
ax.tick_params(labelsize=7)
fig.tight_layout()
print("Count the edges and draw bars, and what you were eyeballing becomes a number.")

🤔 Check yourself

Two nodes sit close together in a network graph. What does that mean?

🤔 Check yourself

You want to show which gene connects to the most others. How?
